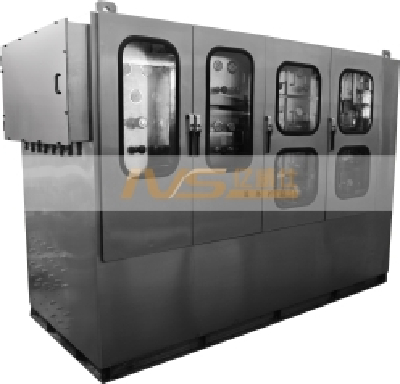

The multi-well control panels (WHCPs) are especially fitted for the oil and gas wells where the multi-wellhead are relatively concentrated, including platforms, artificial islands and onshore cluster wells. With this type of panels, the SSV, SCSSV & other pneumatic and hydraulic valves of multi-wellhead can be monitored and controlled intensively and safely.
- Place of Origin: China
- Brand Name: ivs
- Model Number: IP65
Technical Data
·Wellhead controlling: Multi-well control
·Control valves: SCSSV, SSV, GVV and etc
·Driving mode of being controlled valves: Hydraulic/Pneumatic
·Output pressure range: 0~15,000psi
·Environment temp.: -40~60 ℃
·Driving mode of panels: Electric: 400VAC, 50/60Hz
Pneumatic: 150psi (compressed air)
·Remote signal control: 24VDC
·Explosion-proof grade: Exd II BT4
·Protection grade: IP65
·Panel material: 316SS/316SSL
